Comparison DUT and UT/CSR Orbits for ERS-1

Regional distribution of trends and cyclic behaviour

The next five plots show the values of the four parameters (mean, secular trend, in-phase and quadrature annual cycle) fitted in each local time series of orbital altitude differences between the DUT and UT/CSR orbit solution. The fifth plot shows the remaining variance.

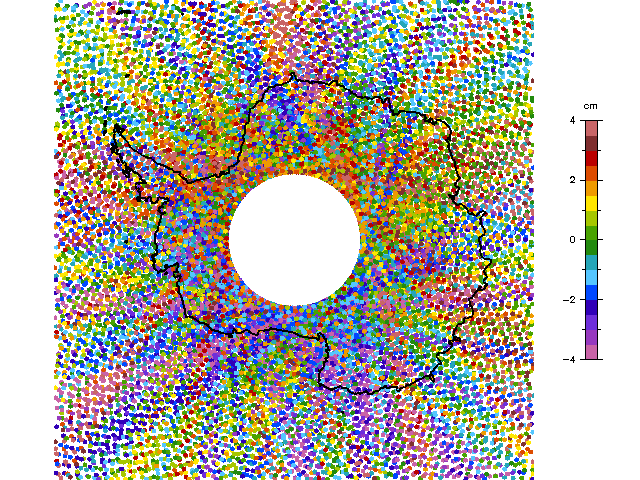

Mean (mean = -0.039 cm, rms = 2.459 cm)

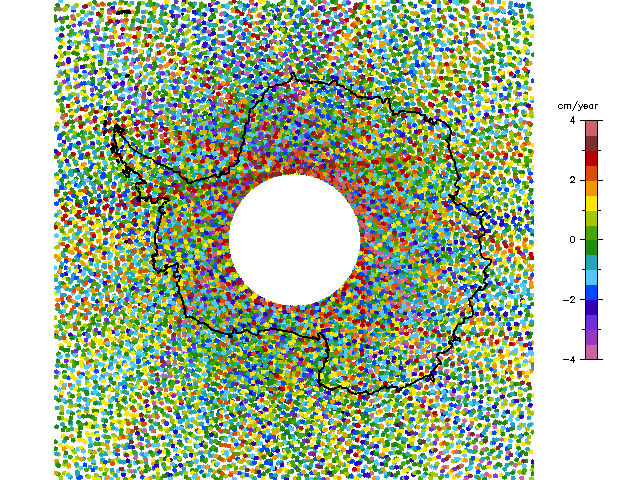

Secular trend (mean = 0.008 cm/year, rms = 1.487 cm/year)

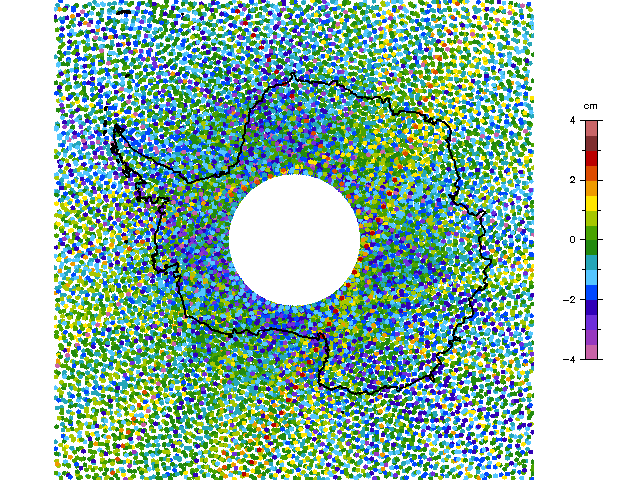

Annual amplitude (in-phase) (mean = -0.423 cm, rms = 1.290 cm)

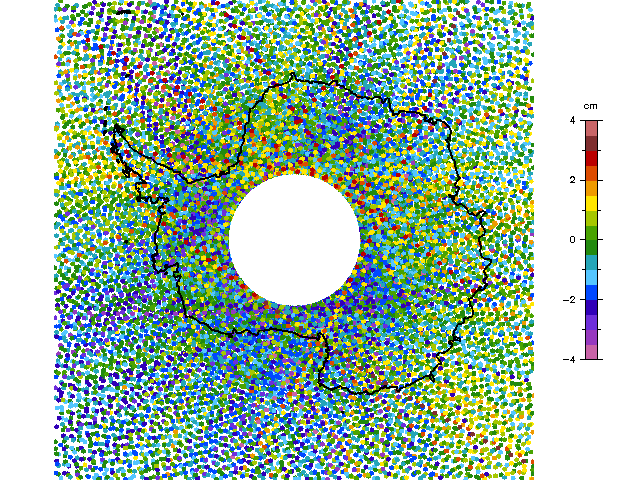

Annual amplitude (quadrature) (mean = -0.569 cm, rms = 1.230 cm)

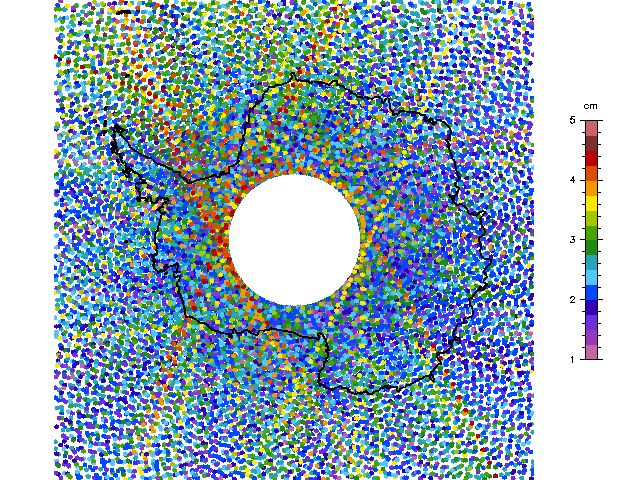

Residual (rms = 2.556 cm)
